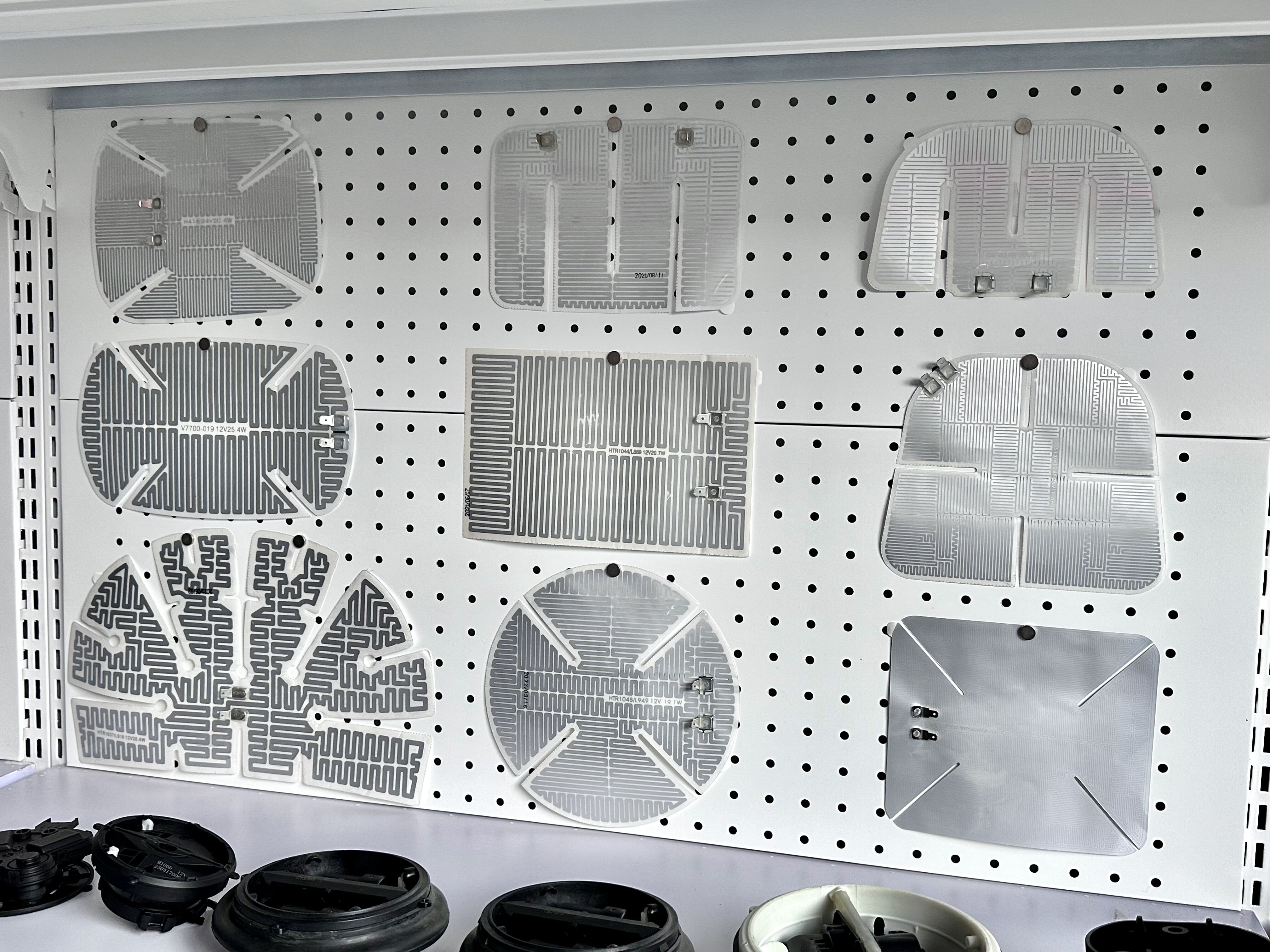

Car Side Convex Mirrors Heater Plates Factory
- Place of Origin：Zhejiang，China
- Model Number：Wanhe
- Product name：auto mirror heater plates
- Package：Carton
- Color：Silver
Heater Properties | Insulation Material | |||
Material | PET | Kapton | Mica | Silicon |
Max Thickness | 0.2-0.3mm | 0.2-0.3mm | 0.8-1.3mm | 0.5-0.9mm |
Max Watts Densities(W/cm2) | 2.5 | 7.8 | 5 | 17 |
Voltage range | 3 -380V | 3 -380V | 3 -380V | 3 -380V |
Dielectric strength | 1000VRMS | 1000VRMS | 1000VRMS | 1000VRMS |
Temperature range | -32 to 130C -25 to 266F | -150 to 200C -328 to 392F | -150 to 600 C -238 to 1112F | -45 to 230 C -50 to 450F |

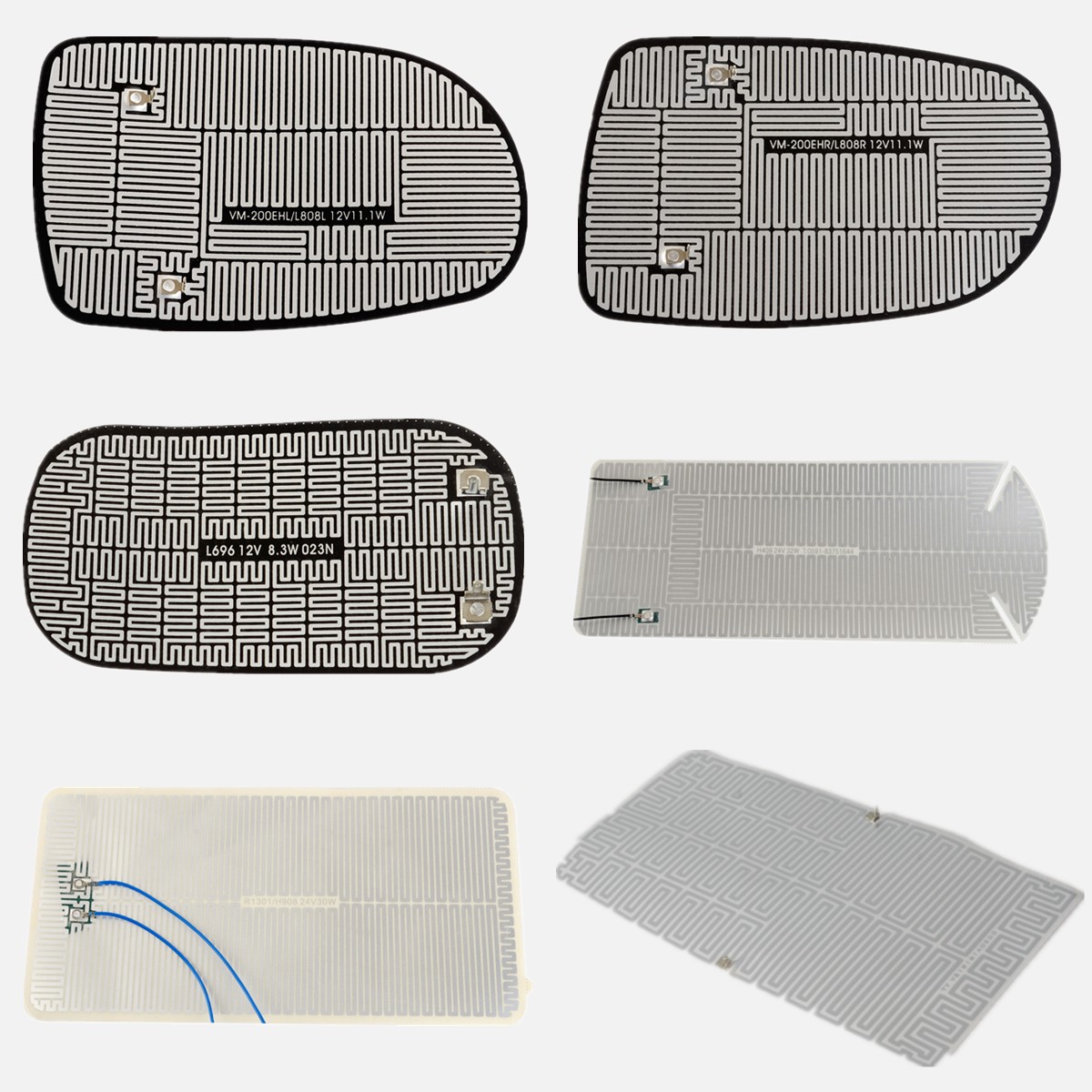

12V 24V electric flexible polyester film heater for car mirrors
PET HEATING FILM
PET heater uses pet polymer as insulated layer. This material offers many design features such as excellent dielectric strength in very thin cross sections. PET heaters can be customized to any size, shape and wattages as your requirements.
1. Voltage: 1.5 to 400V (AC or DC)
2. Temperature range: -100 to 120oC (-212 to 248oF)
3. Power range: 0.07~2W/cm2
4. Standard thickness: 0.1-0.5mm
5. Heater properties: Insulation materials: 0.001-inch PI to 0.002-inch FEP adhesive
6. Color: Transparent, amber-colored
7. Heater flexibility: Best 0.03 inches (0.75mm) minimum bend radius
8. Maximum power per square inch in still air 0.24W: Customize for OEM and ODM client, Maximum thickness over element: 0.015 inches (0.3mm)
9. Can printing your LOGO.
10. Can customize any size, shape voltage flexible PET heater
11. The thinnest 0.1mm as well as various sizes and shapes of units are available
Technical specifications: Defrosting time less than 7min, operating environment -40 degrees~80 degrees
Flexible heater, which is laminated between insulating layers such as Kapton, nomex, polyester, is a kind of thin, flexible etched foil heating element
1. Instruments temperature control: Gyro-accelerating detector, tail-wing operating device, aero-photographic apparatus
2. Electric appliance: Electric cooker, refrigerator defrosting, accumulator, electric blanket, greenhouse, wardrobe, coffee pot, crystal-electric cooker, bathroom-mirror defogging, invariable temperature tank, electronic-thermos, compressor, heater, thermos boxer plate, computer humidity-proofing, textiles and cloth dyer, foot warmer, water bed heater
3. Medical instruments: Disinfection, keeping blood, injections and drips
4. Test and research: Crystal ovens, mechanically-heated structures, IC testers and flasks
5. Agriculture and animal husbandry: Seedling breeder, raising chicken and pigs, breeding fish, incubators, electric blankets for stock and poultry
6. Transportation: Car mirror and signal defogging, water tank heating
7. Others: Electronic copier, food fermentation, food warming box, circuit heating, water bed heating system and more

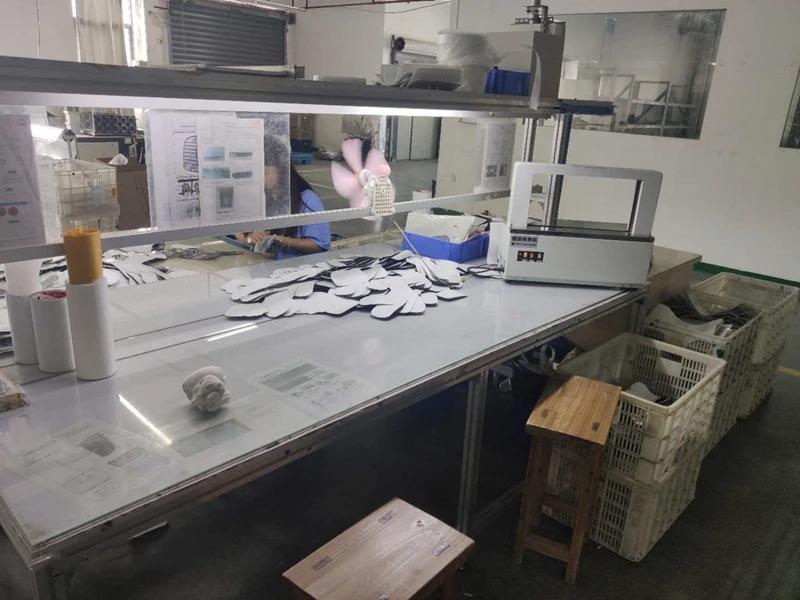

Wanhe offers one step solution for the automotive rear view mirror project.Our capabilities include engineering, testing and manufacture of automotive interior and exterior mirrors. We are able to provide our customers various products as rear view mirror、inner view mirror、convex mirror、mirror actuator、mirror heater、car switch、power folder and auto mirror mould.
We supply products to many countries in Asia, South America, and the Middle East.Through our customers, we are proud to supply our products to Volkswagen, GM, Mekra-Lang, BYD, Hainan Mazda and etc. Our factory has certified via ISO TS 16949:2002 since 2008.
We can offer you:
- Full assembly set design
- Moulds for all plastic parts and metal parts.
- Auto mirror glass
- Manual Type Actuator (manual glass adjustment)
- Electric Type Actuator (electric glass adjustment)
- Glass heater
Q1：What is the advantage about your company?
A1：We have a professional team,which can well ensure the quality of product and service.
Q2：The size can be customized?
A2：Yes, we can customize according to your needs.
Q3：What can we provide?
A3：We can provide a one-step solution for the automotive rear view mirror project.
Q4：Can I get a sample to check the quality of product?
A4：Yes, we can send you samples to check the quality.
Q5: Whats' your payment terms?
A5: TT，L/C，Paypal，Western Union or others accoridng to specific situation.
